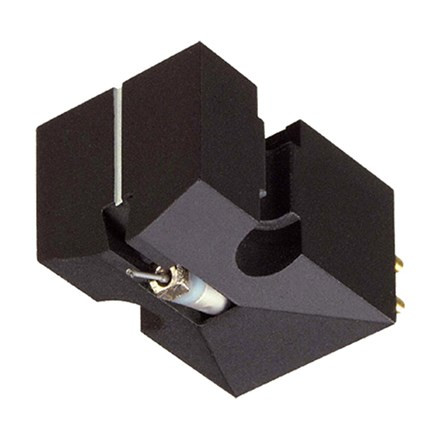

Denon DL-103 MC Phono Cartridge **OPEN BOX**
Open Box Sale
SKU: DEMO_ADENDL103
California residents: Click here for Proposition 65 warning
Full Details
In continuous production for decades, the DL-103 is an audiophile favorite. The DL-103 has a very satisfying combination of smoothness and power, delivering the sonic goods at a price that virtually every audiophile can afford.
The DL-103 has a pretty low output of 0.3mV, requiring an MC phono stage with at least 60dB of gain. Those who have the requisite power will find the DL-103 to be a big, open sounding cartridge with a powerful bottom end, rich midrange and a silky smooth top. The DL-103's overall tonal balance is more towards the warm side, with excellent dynamics complementing virtually any type of music or system.
Specifications
Type: Moving coil (MC)
Output: 0.3 mV
Channel Balance: 1dB Max. (1kHz)
Channel Separation: 25 dB Min. (1 kHz)
Output Impedance: 40 ohms
Suggested Loading: 100 ohms min.
Stylus: 16.5 Micron round tip
Frequency Range: 20 Hz to 45 kHz
Tracking Force: 2.5g ± 0.2g (2.3~2.7g)
Compliance 5 x 10-6 cm/dyne
Weight: 8.5g
Output: 0.3 mV
Channel Balance: 1dB Max. (1kHz)
Channel Separation: 25 dB Min. (1 kHz)
Output Impedance: 40 ohms
Suggested Loading: 100 ohms min.
Stylus: 16.5 Micron round tip
Frequency Range: 20 Hz to 45 kHz
Tracking Force: 2.5g ± 0.2g (2.3~2.7g)
Compliance 5 x 10-6 cm/dyne
Weight: 8.5g
